- Stock: In Stock - Same Day Dispatch
- Model: SIDE-EXPANDER
Available Options
Side Door Frame Extensions - Frame Extender Expanding Side Panels Infill Panels
NOTE - THESE ARE ONLY COMPATIBLE WITH OUR GEN2/V2 STEEL SECURITY DOOR SEEN HERE.

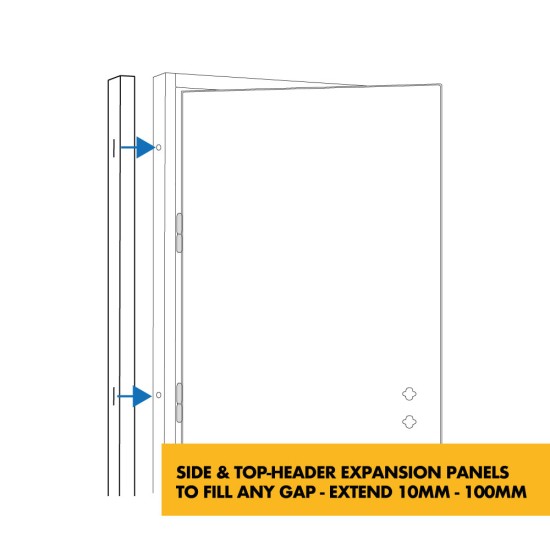

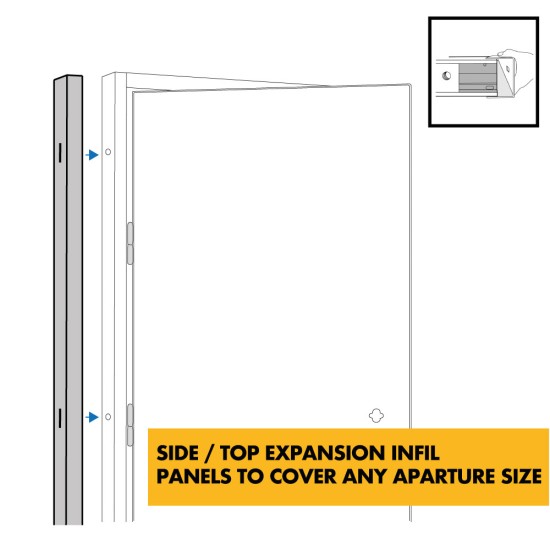

Extend / expand our standard 840 / 940mm / 1040mm doors from 15mm to 100mm. These frame expanding side panels slide onto the standard door frame, and with special wind out lugs can be wound to bridge a gap on either/both side of the door or the top/header panel, between the wall and the door. Hex key required for winding out lugs found at pre-threaded holes at the fixing plate positions.

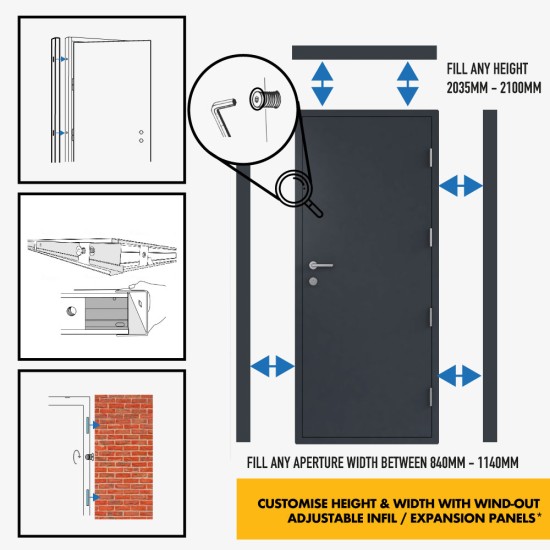

PLEASE NOTE - STOCK STANDARD SIZED 2035mm h x 840mm/940mm/1040mm w. For any sizes in between 840mm - 1140mm, we stock expansion infil panels which simply clip on the side of the door and wind out with an allen key to fill desired gap. 2 sizes available depending on the size of the gap - see selection table for assistance to make any stock door fit a custom sized aperture. 35mm or 55mm side / top expansion infil panels can be added to fit any aperture from 840mm - 1140mm / 2035mm h - 2090mm h. See table below for details & instructions
| Stock Door Size | + 35mm Side Panel | + 55mm Side Panel | + 35mm Header Panel | + 55mm Header Panel |
| 840mm x 2035 | 840mm - 890mm | 890mm - 940mm | 2035mm - 2070mm | 2070mm - 2090mm |
| 940mm x 2035 | 940mm - 990mm | 990mm - 1040mm | 2035mm - 2070mm | 2070mm - 2090mm |
| 1040mm x 2035 | 1040mm - 1090mm | 1090mm - 1140mm | 2035mm - 2070mm | 2070mm - 2090mm |
Infil panel selection table to suit any aperture ie. if you have an aperture 900mm w x 2070mm h, select the 840mm door + 55mm side panel to make 900mm width. Then select the 35mm header panel to increase height from standard 2035mm h to 2070mm.

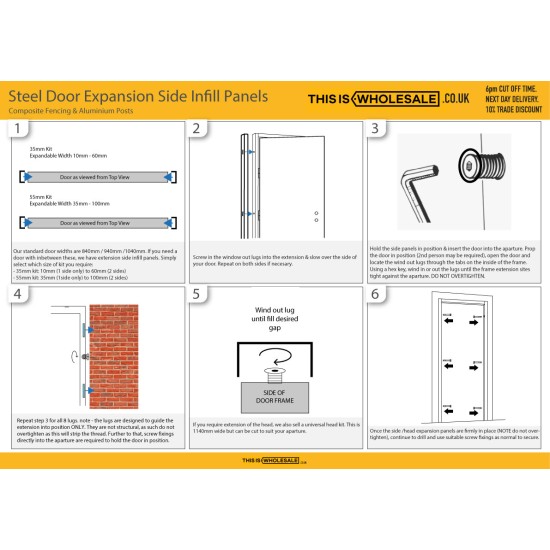

See instructions here for details.

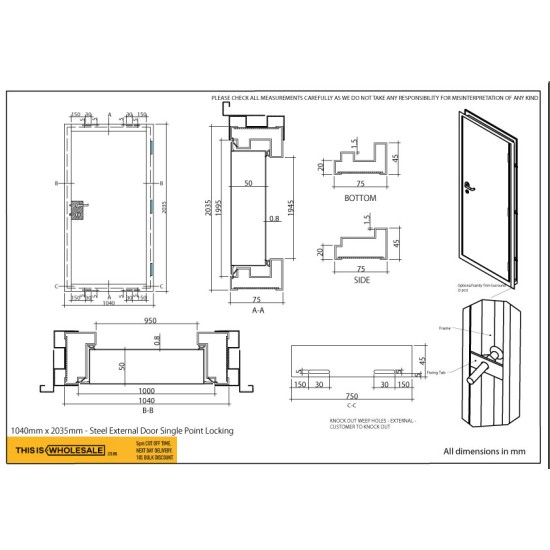

See Technical Drawing & Dimensions Here.
2 sizes available in 4 colours:

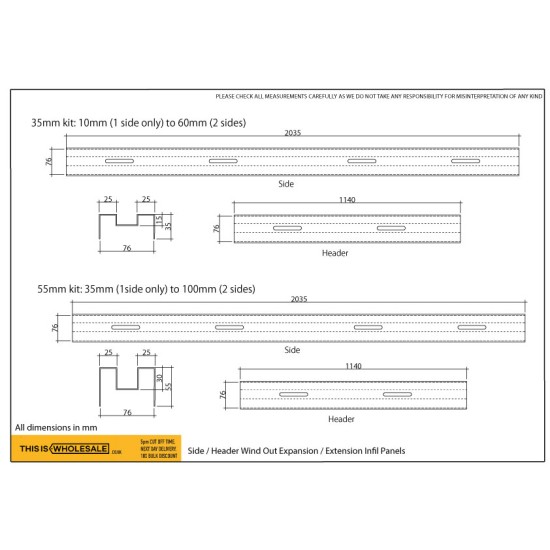

Side Panels
- 35mm kit: 10mm (1 side only) to 60mm (2 sides)
- 55mm kit: 35mm (1side only) to 100mm (2 sides)
Overhead Panels (HEADER panel is 1 length 1140mm and installer needs to cut to size to suit custom width)
- 35mm kit: from 15mm - 30mm extension
- 55mm kit: from 35mm - 50mm extension
(HEADER panel is 1 length 1140mm and installer needs to cut to size to suit custom width)
Colours
- RAL 9003 WHITE (painted both sides in/out)
- RAL 7016 ANTHRACITE GREY (painted both sides in/out)
- RAL 9005 JET BLACK (painted both sides in/out)
- RAL 6007 JUNIPER GREEN (painted both sides in/out)
